Single Channel H.264 SD HD Encoder
With high-quality H.264 encoding, ENC3311Plus delivers FULL HD for an immersive experience with high-resolution and high-framerate.
Description

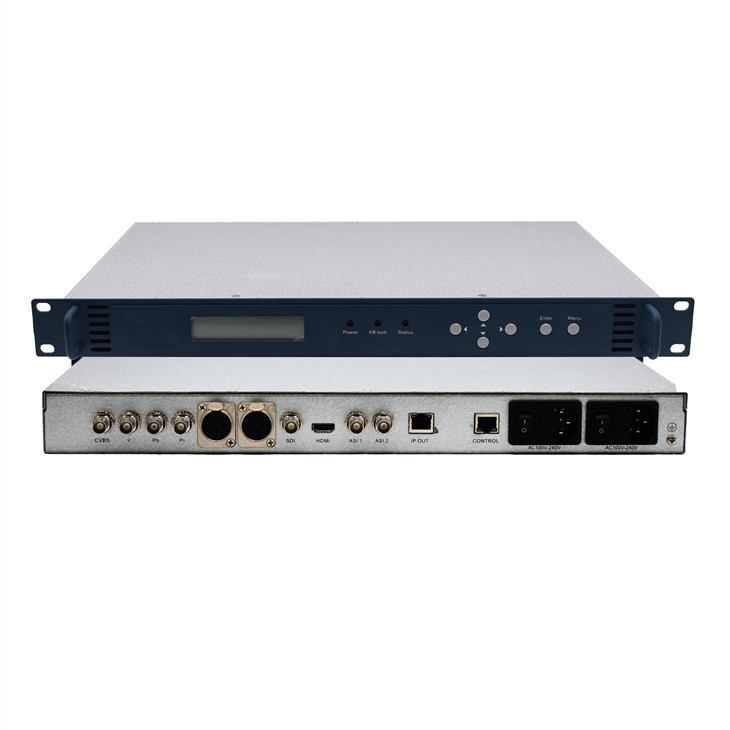

ENC3311Plus Single Channel H.264 SD HD Encoder
ENC3311Plus, a single channel MPEG-2/ H.264 encoder, this new professional FULL HD video encoder for a solution to address the needs of early adopters of the premium TV standard. With high-quality MPEG-2 H.264 encoding, ENC3311Plus delivers FULL HD for an immersive experience with high-resolution and high-framerate.
ENC3311Plus encoder platform is available for both SD and HD MEPG-2 MPEG4 AVC encoding. It is equipped with the latest advances in video compression technology to deliver unsurpassed video quality at lowest bitrates, and low latency to achieve high image quality video and audio transmission, fully support for SDI/ HD-SDI, CVBS, HD-MI, YPbPr interface inputs encoding, both IP and two identical ASI data outputs.
ENC3311Plus highly bandwidth efficient MPEG-2, H.264 VBR CBR encoding and native IP output make it possible to deliver exciting and competitive HD services to broadcast operators.
Features
Advanced MPEG-2 MP@ML4:2:0 and MPEG-4 AVC 4:2:0 (H.264) video encoding
ASIC technologies which offer broadcast, video quality, generally video bitrate advised: SD about 1.2mbps, 720p about 2mbps, 1080 about 6-8mbps for lowest bitrates
HD-MI 1.3a interface, Auto detect the HD-MI input of resolutions
Support the importation of SDI/HD-SDI, HD-MI, CVBS, YPbPr encoding
Audio sampling Rates: 44.1 khz, 32khz, 48KHz
MPEG-1 Layer II, MPEG-2 AAC-LC, MPEG-4 AAC-LC, MPEG-2 HE-AAC, MPEG-4 HE-AAC audio encoding
Supports unicast and multicast IP output UDP protocol as well as two identical ASI outputs
WEB Management and local front panel
Supports resolution: 1080i@50/59.94/60fps, 720p@50/59.94/60fps, 480i, 576i
Built-in time base correction and video pre-processing
Easy-to-Use System Managemen

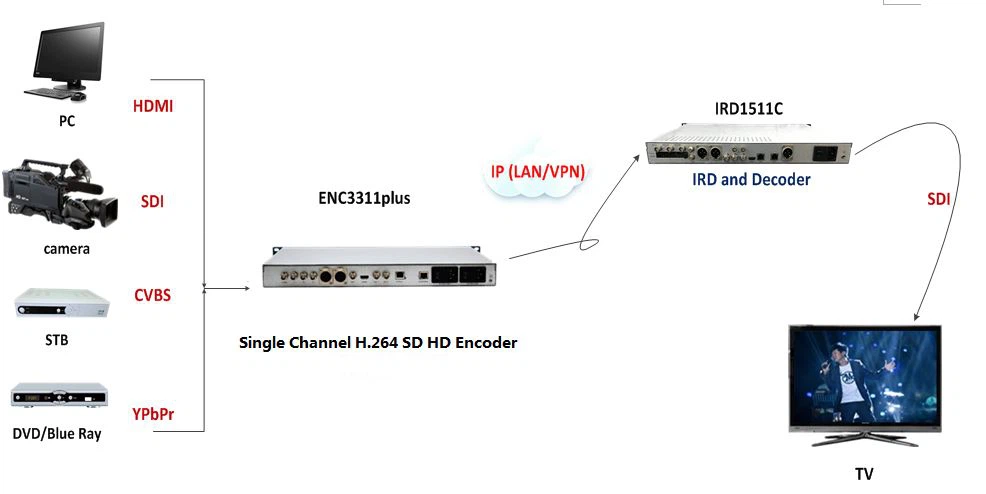

Main Application
Digital TV and IPTV headend system
Point to Point video and audio over IP
Remote live Rebroadcasts and real-time transmission
Building, campus or metropolitan-area
Related Products
ENC3411S | ENC3411 | ENC3711Pro | |
video interface | 1×SDI, 1×CVBS, 1×YPbPr, 1×HD-MI | 1×SDI, 1×CVBS, 1×YPbPr, 1×HD-MI | 1×HD-MI, 1×HD-SDI |
Video Encoding | MPEG-2/SD; MPEG-4 AVC/H264 HD/SD | MPEG-2 HD/SD; MPEG-4 AVC/H.264 HD/SD | HEVC/H.265 HD MPEG-4 AVC/H.264 HD |
Rate Control | CBR/VBR | CBR/VBR | CBR/VBR |
GOP | IBBP, IPPP, IBP, IBrBBP | IP, IPB, IPBB, IPBBB, IPBBBB, IPBBBBB | IPPP, IBBP |
Bit Rate | 0.25-20Mbps | 0.25Mbps~60.5Mbps | HEVC/H.265: 0.5 – 20.00 Mbps MPEG-4 AVC/H.264: 4 – 20.00 Mbps |
Resolution | One-seg PAL ---352*288i/320*240i/320*180i /176*144i/160*120i/160*90i @50Hz NTSC---352*288i/320*240i/320*180i/ 176*144i/160*120/160*90i @59.94Hz | 1920×1080i 1280x720p 720×576i 720×480i One SEG/PIP: 96×96, 128×96, 128×128, 192×192, 352×240, 352×288, 416×240 | 1920×1080p @50 1920×1080i @60/59.94 1920×1080i @50 1280×720p @60/59.94 1280×720p @50 |
1920 x 1080I@50/59.94/60fps 1280x720p @50/59.94/60fps 720x480, 720x576 | |||
Audio Interface | 2*XLR(balanced) SDI/HD-MI embed audio | 1*Digital (AES3/EBU), 2*Analog R /L and 2*XLR (balanced/unbalanced) | 2×XLR, 2×AES, 2×RCA, SDI/HD-MI embeded audio |
Audio Encode | MPEG-1Layer2/MPEG2/AAC Audio | MPEG-1 Layer II,HE-AAC (v1&v2), LC-AAC; DD AC3 passthrough | MPEG-1 Layer II, HE-AAC (v1&v2), LC-AAC, DD AC3 passthrough (for SDI and HD-MI) |
Audio Channel | 1 Stereos | Up to 2 stereos | Up to 2 stereos |
Chroma | 4:2:0 | 4:2:0 | 4:2:0 |
ASI output | YES | YES | YES |
IP out | MPTS/SPTS over UDP/RTP | MPTS/8*SPTS over UDP/RTP | MPTS over UDP / RTP /RTSP |
