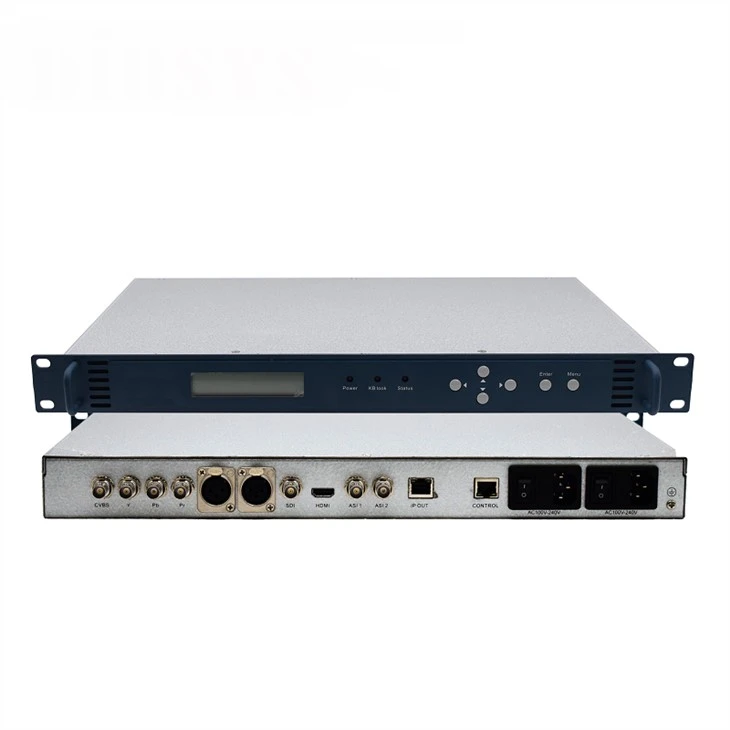

PREMIUM HD/SD ENCODER ENC3411
ENC3411, hardware platform has been widely deployed for MPEG-2 and MPEG-4 AVC HD broadcasting applications.
Description
Overview
ENC3411, hardware platform has been widely deployed for MPEG-2 and MPEG-4 AVC HD broadcasting applications. For telcos and other IP-based service providers, the encoder is highly bandwidth efficient VBR CBR encoding and native IP output make it possible to deliver exciting and competitive HD services.
With high-quality MPEG-2 H.264 encoding, ENC3411 delivers FULL HD for an immersive experience with high-resolution and high-framerate. It fully supports for SDI/ HD-SDI, CVBS, HD-MI, YPbPr interface inputs encoding, both IP and two identical ASI data outputs, and capable of simultaneously delivering high and low resolution channels for new applications. It helps DVB Operator distribute programs with 2 resolutions in one unit ENC3411.
ENC3411 is the industry’s HD encoder based on ASIC processing technology and provides full 20-30% compression gain over the first generation of DSP-based MPEG-4 HD encoders.
Features
Advanced MPEG-2 MP@ML4:2:0 and MPEG-4 AVC 4:2:0 (H.264) video encoding
ASIC technologies which offer broadcast, video quality, generally video bitrate advised: SD about 1.2mbps, 720p about 2mbps, 1080 about 6-8mbps for lowest bitrates
HD-MI 1.3a interface, Auto detect the HD-MI input of resolutions
Support the importation of SDI/HD-SDI, HD-MI, CVBS, YPbPr encoding
Audio sampling Rates: 44.1 khz, 32khz, 48KHz
MPEG-1 Layer II, MPEG-2 AAC-LC, MPEG-4 AAC-LC, MPEG-2 HE-AAC, MPEG-4 HE-AAC audio encoding
Supports unicast and multicast IP output UDP protocol as well as two identical ASI outputs
WEB Management and local front panel
Supports resolution: 1080i@50/59.94/60fps, 720p@50/59.94/60fps, 480i, 576i
DVB compliance with 2 streams output simultaneously: high (HD) and low resolution (SD) channels
Built-in time base correction and video pre-processing
Easy-to-Use System Management
passed the EU CE certification
