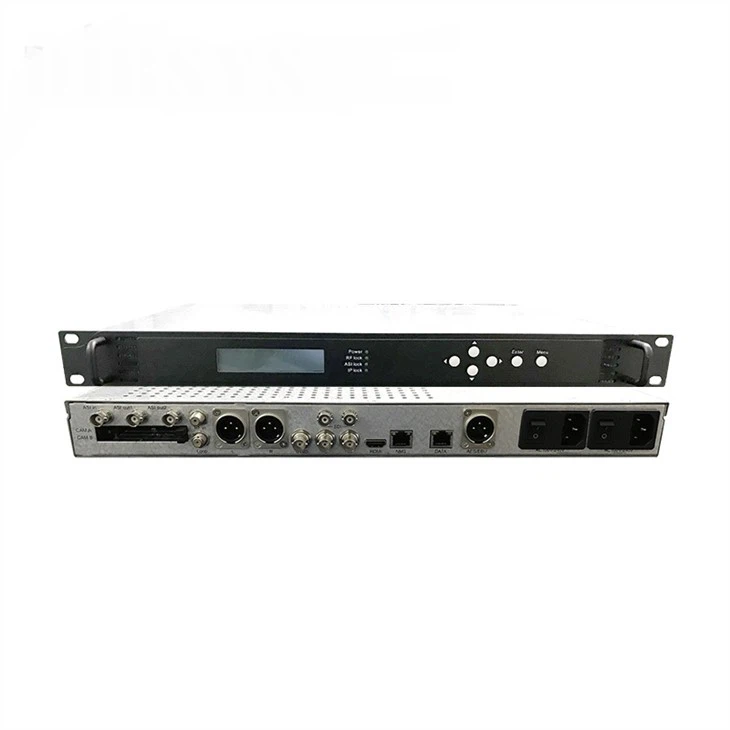

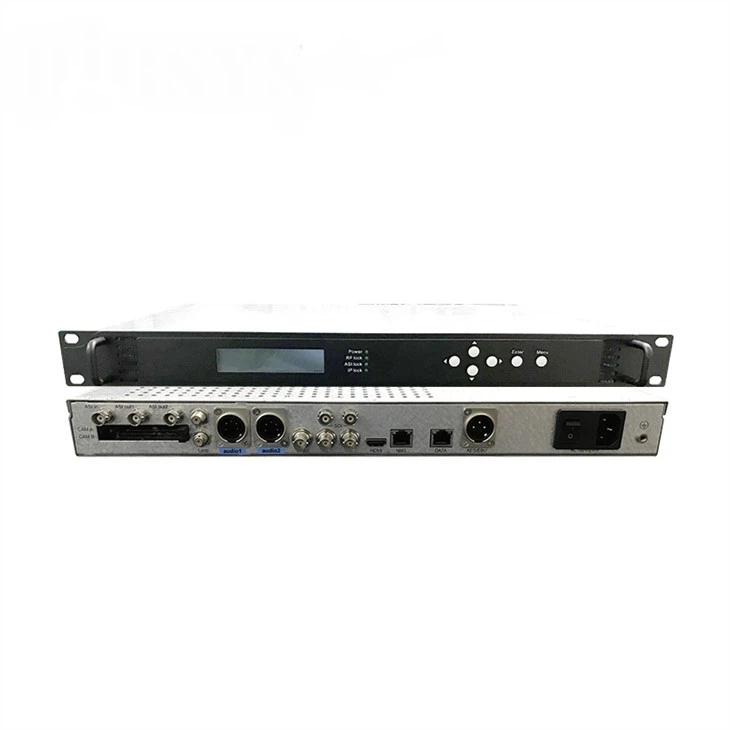

Universal Single Channel H.265 Decoder And IRD
Advanced Modular Receiver has the capability to provide the ultimate feature-set of HEVC UHD/4K, 2160p@30fps, 1080p allowing broadcasters to achieve the highest possible video quality.
Description
With the significant increase in 4K/UHD TV sets hitting the Head-end market, content providers and TV broadcasters are looking for low cost Video solution to address the needs of Collect the UHD H264, H265, MPEG2, AVS+ Channels from Cable, Terrestrial, Satellite and IPTV Networks, IRD1511 series Decoder is the answer.
Advanced Modular Receiver has the capability to provide the ultimate feature-set of HEVC UHD/4K,2160p@30 fps,1080p allowing broadcasters to achieve the highest possible video quality.
IRD1511 series offers Main, Main 10 and Main 4:2:2 High Definition decoding in all industry-standard compression formats combined with optional one Tuners in DVB-S2, DVB-S2X(optional), DVB-T2, DVB-C, works as ASI and TS/IP together. Up to 2 CI slots capable of working with most of well-known CAS in the market to de-crypt multiple pay TV services. The unit ingests is through DVB-ASI or GigE and output is through 3G SDI, HDMI2.0, AV ports. This efficient and flexible configuration enhances the use cases and overall effectiveness of the product.
Features
MPEG2,H264,AVS/AVS+ and HEVC Decoded in UHD/4K,HD and SD
Inputs signals: UDP/IP, ASI and Tuners simultaneously in DTV,only IP for UDP/RTP, (HTTP/HTTPS/HLS M3U8/ RTSP/RTMP/MMS/SRT optional) in Network Decode
Optional Tuners DVB-S2, DVB-S2X(optional), DVB-T2 or DVB-C inputs
Multiple Analog and Digital Outputs, ASI, CVBS, YPbPr, HDMI, SD/HD-SDI, AES/EBU Audio, TS/IP
Decode to Up to 2160p@30fps in HDMI,1080i@60fps in SDI outputs
Supports VBI TELETEXT, EBU/DVB Subtitle, Closed Caption
MPTS Over UDP IP as mirrored of ASI out
2x DVB-CI Slots,Multi Programs,BISS-1 and BISS-E decryption
Configure Audio Channels In Up to 2 *AES/EBU, 2*XLR and 2*embed of HDSDI out
Option Single or Dual Power Supply
Low Latency decode
Audio decoding: AC3/E-AC3/AAC/MPEG1 L2
Front-panel and web-based user interfaces
Order Information

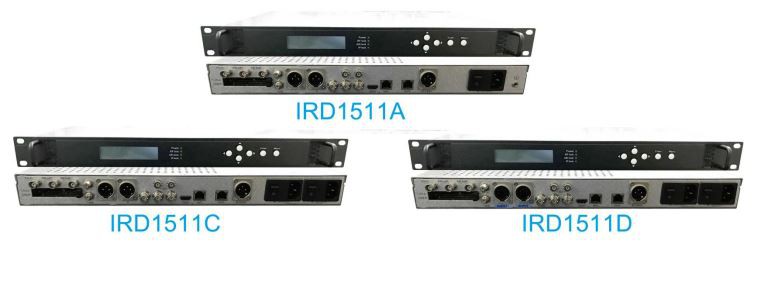

Model | Max.Res | Audio | Tuner | URL (optional) | Interface | Rj45 Port | Power Supply |
IRD1511A | 1080P@60fps; 4k@30fps optional | Single | × | √ | 1*HDMI, 2*SDI, 1*XLR, 1*AES/EBU, 1*AV | 1000M | 1 switching power |
√ | × | ||||||
IRD1511C | 1080P@60fps; 4k@30fps optional | Single | × | √ | 1*HDMI, 2*SDI, 1*XLR, 1*AES/EBU, 1*AV | 1*1000M | 2 switching power |
√ | × | ||||||
IRD1511D | 1080P@60fps; 4k@30fps optional | Dual | × | √ | 1*HDMI, 2*SDI, 2*XLR, 2*AES/EBU, 1*AV | 1*1000M | 2 switching power |
√ | × |
