Q924M16A 24Ch H264 HD and ip to 16 ATSC Modulator
Built in modulation board, Q924M16A support 16* ATSC Modulation.
Description
Overview
Q924M16A video platform, digital systems demand powerful, flexible, multipurpose video processing and compact solutions that allow the service provider to support new network architectures.
This 1RU case comes with 6 independent hot-swappable module slots, each module can be configured individually based on the applications including encoding, modulating processing and the combination of all these functions. Built in modulation board, Q924M16A support 16* ATSC Modulation.
Its pluggable and Hot-swappable module, flexible configuration is making it extremely scalable, reliable with high performance. Q9 is an efficient, low-cost digital TV headend device, which can be used in public place such as metro, market hall, theatre, hotels, resorts for advertising. It also can be used for monitoring, training and educating in company, campus, hospital.
Focusing on benefits
high PCR precision
audio and video synchronization
code stream transmitting stably in the network
smooth and stable video play
Low network jitter and PCR jitter
up to 8*MPTS with null packets
each MPTS is less than 100Mbps
can be used in 100Mbps network environment
powerful stream processing capability

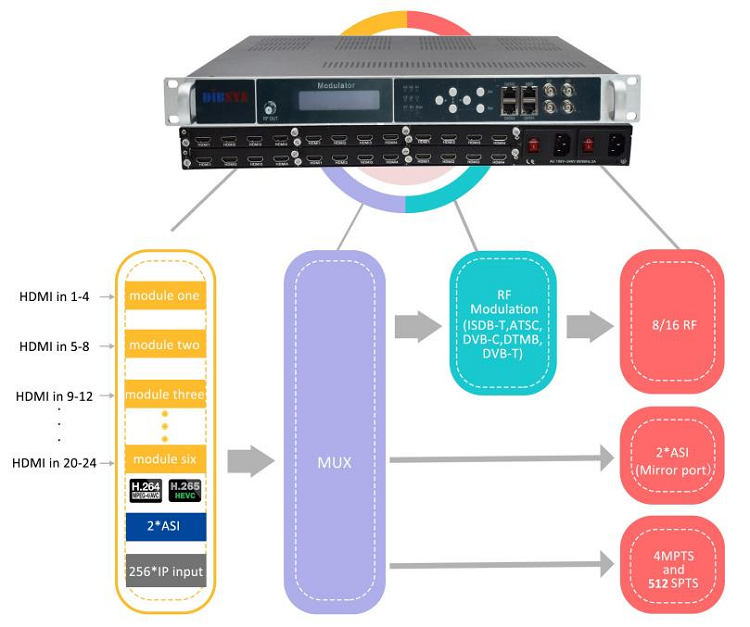

Highly integrated--- ①24 channels HDMI encoding, ②up to 8*MPTS build in MUX, ③512 *SPTS Demux outputs
Widely used in convert MPTS of DTV to SPTS of IPTV
PID filtering, re-mapping and PSI/SI rebuilding and editing supported
SPTS stream for IPTV
512 *SPTS Demux outputs for Community, Campus, Hospital IPTV
Features
6 independent hot-swappable module, 4* HD-MI per module
flexible encoding&modulating board combination
ATSC, 16 Carrier RF Out per port;
H.264 video encoding
Two separate ASI input for External TS Multiplexing
Simultaneously 4*MPTS and 512*SPTS over UDP/RTP IP out
16 separate multiplexing and Up-converter modulating adjacent carrier out
support multiplexing function: multiplex any input to RF or MPTS output
Audio encoding: MPEG-1 Layer 2, AAC-LC, AAC-HE v1(SBR), AAC-HE v2(SBR+PS), AC3 (H.265 version)
Selectable the Value of PCR PID same as Video PID
Non adjacent-frequency supported
Support TTL editing
PSI/SI editing & inserting
PID Remapping & Filtering
Selectable LOGO,QR code,OSD insertion for every, All or Each module of local channel
Support PCR correct and PCR interval adjusting
Easy-to-Use System Management via Web
Redundancy Power Supply
dual power supply
Remote WEB reboot supported
