Vod Transcoding

Overview

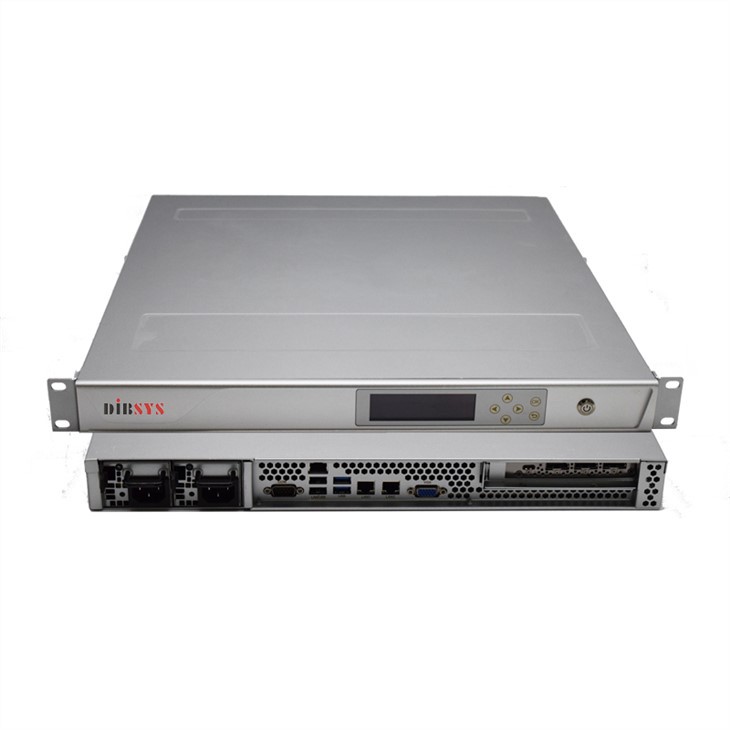

Anystream415H, a cost-effective appliance for live content transcoding, it provides high-density and scalability for traditional broadcast over cable, IPTV, DTH and DTTV, as well as for multiscreen applications. It converting providers H.264, MPEG2 and HEVC (H.265) contents to each other.



For satellite, terrestrial, cable and multiscreen applications, the Anystream415H has become an ideal solution for operator to provide high quality video transcoding. It can transcode a mix of channels independent of their codec (MPEG-2, MPEG-4 AVC or HEVC), resolution (HD, SD and low resolution) and frame rate (up to 60 fps). Video can be delivered to an external packager, or it can be internally scrambled and packaged in the Apple® HLS, Microsoft® Smooth Streaming and MPEG-DASH formats. HLS output supports multiple resolutions and bitrates in one address, which used for OTT Live system. It can automatically switch resolution based on the terminal's network to ensure the users receive high-quality and smooth videos.



Anystream415H provides the high bandwidth efficiency on the market, and the best video quality to end users. Purpose on huge number of transcoded channels deployment fast, our R & D team also provides transcoding capable of 200 channels with high density, High reliability and Cost effective video headend distribution solution.



Features

1. High density 1-RU platform can transcode up to 15*SD or 15*720p or 15*Full HD or 2* 4K profiles
2. Creates simultaneous High,Medium, and Low bitrate streams (profiles) of MultiScreen IPTV application
3. H.265/HEVC Main Profiles Level 5.1
4. Baseline, main profile & high profile with variable GOP
5. Picture-in-picture (PIP) operation supported
6. Default HD-to-SD down; SD-to-HD up optional
7. Support RTMP, HTTP Live Streaming and HLS encrypted function, Pull/Push HTTP/RTSP, RTMP, UDP, SDP, SRT protocol for input/out (HTTPS input only, RTMPS output only)
8. Support UDP SPTS/MPTS input/output
9. 1080i resolution supported for input/output
10. Support MPEG-DASH,only for single bitrate, H264, AAC
11. Flexible GOP structures with Reference-frame and B-frame edit
12. High quality pre-processing including filtering, Deinterlacing, cross scaling, image insertion
13. PCR correction to accurately correct several PCR of the input data
14. Based on embedded Ubuntu Linux via flashdisk
15. DVB Subtitle and Logo insertion
16. Parameter template settings and imports
17. Real time preview of input video stream in encoding and parameter configuration
18. The preview interface adds color control adjustment (CCATM) function (video output brightness, contrast, saturation, aberration).
19. TS parameter configuration: The output stream can be edited to change the program number, program name, supplier (for video output part), easy to identify end device
20. Real-time dynamic monitoring of each transcoding channel operation
21. Support multiple devices unified management
22. Dual hot-swappable power supply
23. Easy configuration via Web GUI
24. Designed for secure 24*365 operation



Main Application

• Distribute Lowest bitrate HD Video to Ethernet

• Bandwidth reduction for Internet/OTT streaming and wireless networks

• IPTV live stream transcoding

• Transcoding for multi-screens and devices for set-top boxes, tablets, mobile phones

• Small/Middle-Scale Headends for Multiple System Operators

• Upgrade H.264 to HEVC Video headend solutions

• VOD archives from live streams
