Single Channel MPEG2 H.264 SD HD Encoder

Overview

ENC3311Plus, a single channel MPEG-2/ H.264 encoder, this new professional FULL HD video encoder for a solution to address the needs of early adopters of the premium TV standard. With high-quality MPEG-2 H.264 encoding, ENC3311Plus delivers FULL HD for an immersive experience with high-resolution and high-framerate.

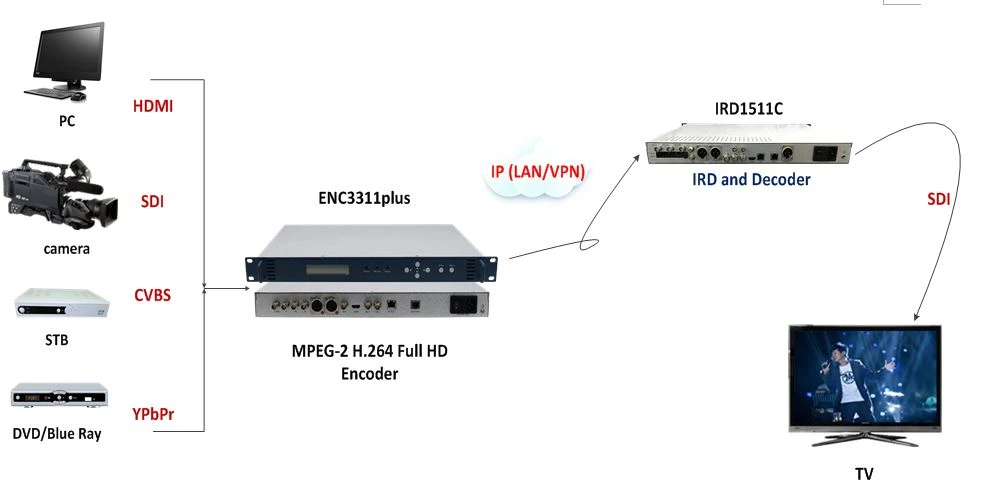

ENC3311Plus encoder platform is available for both SD and HD MEPG-2 MPEG4 AVC encoding. It is equipped with the latest advances in video compression technology to deliver unsurpassed video quality at lowest bitrates, and low latency to achieve high image quality video and audio transmission, fully support for SDI/ HD-SDI, CVBS, HD-MI, YPbPr interface inputs encoding, both IP and two identical ASI data outputs.

ENC3311Plus highly bandwidth efficient MPEG-2, H.264 VBR CBR encoding and native IP output make it possible to deliver exciting and competitive HD services to broadcast operators.

Features

• Advanced MPEG-2 MP@ML4:2:0 and MPEG-4 AVC 4:2:0 (H.264) video encoding

• ASIC technologies which offer broadcast, video quality, generally video bitrate advised: SD about 1.2mbps, 720p about 2mbps, 1080 about 6-8mbps for lowest bitrates

• HD-MI 1.3a interface, Auto detect the HD-MI input of resolutions

• Support the importation of SDI/HD-SDI, HD-MI, CVBS, YPbPr encoding

• Audio sampling Rates: 44.1 khz, 32khz, 48KHz

• MPEG-1 Layer II, MPEG-2 AAC-LC, MPEG-4 AAC-LC, MPEG-2 HE-AAC, MPEG-4 HE-AAC, Dolby Digital AC-3 (optional) audio encoding

• Supports unicast and multicast IP output UDP protocol as well as two identical ASI outputs

• WEB Management and local front panel

• Supports resolution: 1080i@50/60Hz, 720p@50/60Hz, 480i, 576i

• Built-in time base correction and video pre-processing

• Easy-to-Use System Management
