How To Use DVB-T2/S2 Signal For Old DVB-T Analog TV

DVB-T2 is the extension of the television standard DVB-T, issued by the consortium DVB. Due to increasing scarcity of spectrum and requirements for high transmission capacity in recent years, an updated standard with more spectral efficiency is required to replace DVB-T.

The DVB-T2 system is capable of meeting these requirements, due to its increased capacity, robustness, and the ability to reuse existing reception antennas. The regions which previously adopted DVB-T systems, primarily countries in Europe, Africa and some countries of Asia, will be migrating to DVB-T2.

Soon in Spain (Europe) they will stop broadcasting DVB-T channels in standard SD resolution (Mpeg2) and everything will be broadcast in HD (H.264-Mpeg4). At present, Europe has basically upgraded the DVB-T2 system. But some hotels or hospitals still use DVB-T or Analog TV, which they need use Transmodulator, DVB-T2 to DVB-T.

Dibsys is the ideal company to help you overcome today`s complex business challenges while delivering low total cost of ownership.

DIBSYS will offer 3 solution to different cases:

DVB-T2 Mpeg-2 upgraing to DVB-T2 HD H.264

    High quality HD H.264/HEVC encoder -- upgrade SD to HD

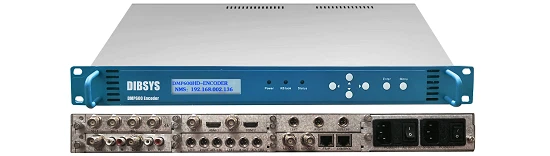

DMP600

Hot-swappable and modular design

High level H.264 encoding platform

includng different module:

4x3G-SDI(4K-HEVC/H.265 UHD) encoding module

HD-SDI encoding module

digital/analog audio encoding module

analog video encoding module

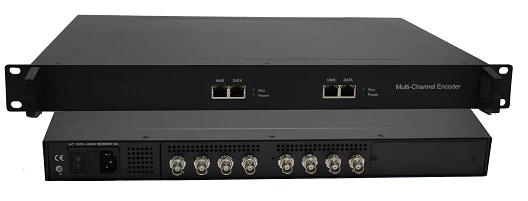

ENC3741S

4/8/12 HDMI input, SDI optional

HEVC/H.265, MPEG-4 AVC /H.264 video encoding

Ultra-low bitrate to save 75% Bandwidth

MOD6420

DVB-T2 modulator

Fully complying with ENC302755 standard

10MHz input/loop out, 1PPS input/loop out

Supports single PLP

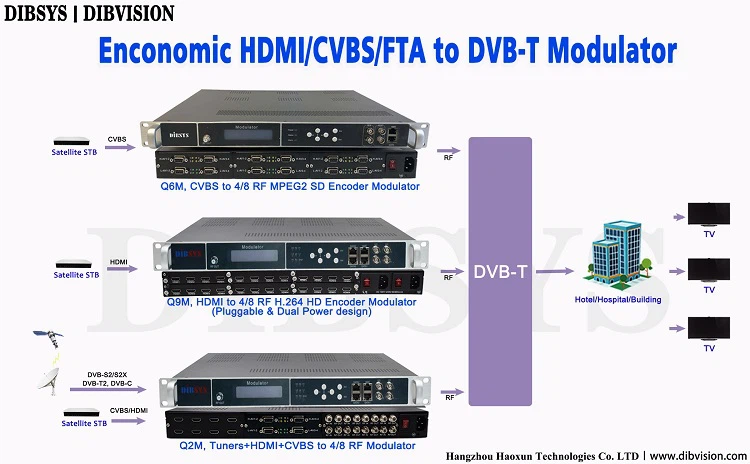

DVB-T2 to DVB-T transmission for HOTEL, Hospital programs

    Encoder Modulator Transmodulator For DVB-T

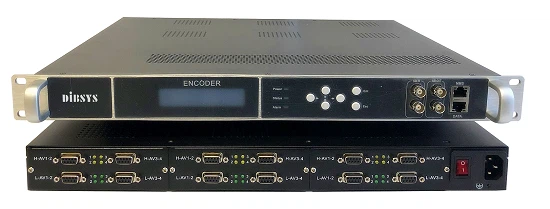

Q624M8

24 Composite inputs (Option 4,8,12,16 Channels) 6 module in total

MPEG-2 video encoding

8*DVB-T Modulating output

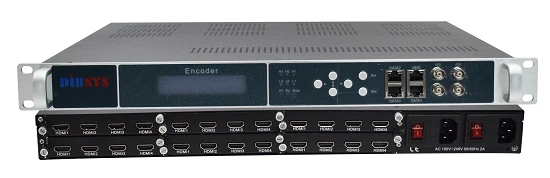

Q924M8A

24 HDMI inputs (Option 4,8,12,16 Channels) 6 module in total

H.264 video encoding

8*DVB-T Modulating output

Q2M

flexible encoding&modulating board combination

24 Channels AV/HDMI/FTA TUNER in

8*DVB-T Modulating output

DVB-T2 to Analog PAL B/G transmission for HOTEL, Hospital programs

    Digital to analog converter DVB-T2/S2 HDMI to Analog TV solution

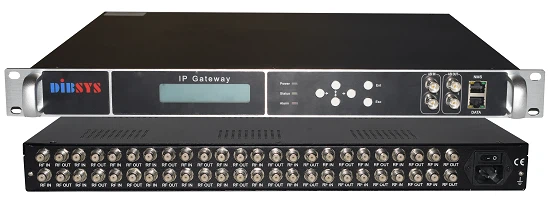

Q124

24 FTA Tuner optional DVB-T2, DVB-S2

DVB-S2 inputs support up to 16apsk, 32apsk (optional)

Support BISS-1 and BISS-E decryption

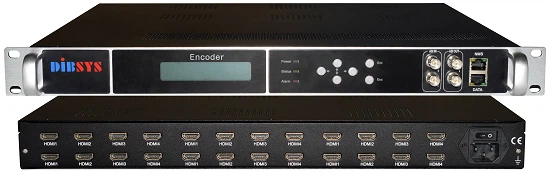

Q324
