Multi-service Transmodulator And En-modulator-Hotel Hospital Community upgrading to Digital TV System

why choose DIBSYS solution

• Cost-effective - solution to distribute your Video Signals with Perfect Digital Quality

• Signal quality - won’t degrade like analog

• Simple configuration- add or upgrade channels in minutes

• Clear QAM broadcast- works with all standard HDTVs

• Using the existing Coaxialanalog Cable - combined with the other TV channels

Q124M Series DVB-S2 FTA IRD  optional Modulator

• up to 24 tuner DVB-S2 input,  optional ISDB-T, DVB-C, DVB-T/T2, DTMB, ATSC

• DVB-S2 up to 16apsk, 32apsk (optional)

• 512*SPTS and 4*MPTS and N*tuner passthrough Output

• Operation via LCD Screen and Web Management

Q324M Series up to 24 channels HD MI H.264 Encoder Modulator

• up to 24 HD MI input, optional ISDB-T, DVB-C, DVB-T/T2, DTMB, ATSC modulation out

• 4*Carrier RF Out, (8*Carrier RF Out optional)

• video format: H.264 encoding

• audio format: MPEG-1 Layer 2, Optional: AAC-LC, AAC-HE v1, AAC-HE v2

• Operation via LCD Screen and Web Management

Q724M Series up to 24 channels HD MI H.264 (HEVC) Encoder Modulator

• up to 24 HD MI input, optional ISDB-T, DVB-C, DVB-T/T2, DTMB, ATSC modulation out

• 4*Carrier RF Out, (8*Carrier RF Out optional)

• video format: H.264, HEVC/H.265 encoding

• audio format: MPEG-1 Layer 2, Optional: AAC-LC, AAC-HE v1, AAC-HE v2

• Operation via LCD Screen and Web Management

Q624M Series up to 24 channels AV MPEG-2 Encoder Modulator

• up to 24 24 Composite inputs

• optional ISDB-T, DVB-C, DVB-T/T2, DTMB, ATSC modulation out

• video format: MPEG-2 encoding

• audio format: MPEG-1 Layer 2, Optional: AAC-LC, AAC-HE v1, AAC-HE v2

• Operation via LCD Screen and Web Management

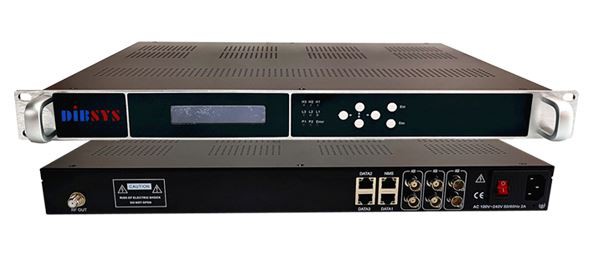

RF Gateway IP to DVB-C Modulator

• RF tuner flexible combination, 4 modules in total

• Each module supports 384*IP inputs over GbE Port, and 6 ASI input

• DVB-C (QAM) Modulation, 16/32 Channel Non-adjacent Carrier RF output)

• Supports non-adjacent frequencies in the whole frequency range, and solves a small number of isolated frequency

iMOD60 IPTV Gateway and Modulator

• IP (HTTP, UDP, RTP, RTSP and HLS) input through Data/Data 1/2 port

• 16*DVB-C/8*DVB-T/6*ISDBT/8*ATSC RF out

• 16 chs multiplexing

• 4 chs scrambling  (only for DVB-C)

• Maximum simulcrypt CA: 4 CA

STB220M DVB-C H.264 Set Top Box

• HD DVB-C set top box compliant with MPEG2 and MPEG4 H.264 and AVS

• CPU: Montage M88cc6000-t010 (High-performance dual MIPS CPU)

• Compatible with HDTV channels and equipped with HD MI connector

• Fully compatible with DVB-C EN300 429/ITU J.83B (AnnexB)

• Support EPG, Boot screen, subtitle, teletext etc

Simple Hotel/Hospital/Community upgrading to Digital TV System

This project is located in a small community and needs to provide video services for 200 users. This solution uses the existing analog coaxial network to upgrade to digital television. It contains 100 channelsof programs (HD/SD). The program sources are as follows:

• 20 channels from FTA IRD

• 60 channels from Satellite receiver with HD MI/AV

• 20 channels from Cable TV Operators

The signal received from RF demodulators & decoder and output with HD MI/AV.

For the IRD, Q124M, 24 tuner DVB-S2, ISDB-T, DVB-C, DVB-T/T2, DTMB, ATSC types, with DVB-C modulation out.

For the video SD MPEG-2 encoder modulator,Q624M, which can support 24 channels SD;

For the video HD H.264 encoder modulator, Q324M, which can support 24 channels HD MI;

For the video HD H.265 encoder modulator, Q724M, which can support 24 channels HD MI;

This is suitable for upgrading digital TV in small communities, hotels, and hospitals.

1) .FTA IRD optional Modulator

Q124M: 1 set

2). SD or HD Encoder

Q624M---SD: 20CH =1 set

Q324M---HD (H.264): 20CH =1 set

Q724M---HD (H.265): 20CH =1 set

3). RF GATEWAY: 1 set

4).iMOD60: 1 set

5). STB220M DVB-C H.264 Set Top Box: 200 sets

Hotel/Hospital/Building/Shopping mall/Residential/School/Bars...

Customer Case Analysis

Hotel Project Construction Drawings

BUSINESS BENEFITS

• Compared with analog TV, the image will be more clear, which can make use of the HDTV with the QAM RF tuners in one step to upgrade to digital television, and bring you enjoy the high-definition TV life experience.

• Compared with the IPTV system, the upgrade and maintenance cost is more lower. And also can use the existing coaxial cable, and other existing programs to watch more TV programs.

• More stable and reliable, and scalable

• Easy to Maintenance and Management System,front panel LCD for easy channel viewing and LAN port for advanced and remote configuration.

• Apart from supporting DVB-C standards, it also supports which according to the customer’s other standards demand of equipment such as applicable to the Japan /South American ISDB-T,European DVB-T, North American ATSC standard.

More details contact sales:

John Pan

Sales Manager

DIBSYS Technologies Co., Ltd

--------------------------------------------------------------------------------

Web: www.dibvision.com

Tel: +86-571-87068982 Fax: +86-571-89714580

Mobile: +86 13957196036  What's App: +86 13957196036  Skype: dibdvb
