Multi Protocols IPTV Gateway
IPTV Gateway Controller& Control；Contribution and Distribution；Protocol conversion scenarios
Description
Overview
DCM750 is a powerful, yet low power consumption, rack-mount IPTV Gateway Controller& Control Interface for 24/7 operation. Its modular design enables integrators and operators to select from various protocol to customise operation and on-going service.
It can convert the broadcast network IP stream over HTTP, SRT, UDP, RTP, RTSP and HLS and TS file into HTTP, UDP, SRT, HLS and RTMP protocol. The platform can achieve the integration by receiving a variety of commercial streaming media services, and can provide streaming media services directly.
Designed for the centralised control of Android STB's the control protocol conversion function acts, used for the protocol conversion scenarios and streaming media distribution scenarios, to the commonly deployed STB's in the hotel, hospitality, corporate, education and entertainment sectors.
Features
-
low power consumption, rack-mount design
8/10 Data ports(DCM750):
First Data port: IP out over HTTP, UDP, SRT,HLS and RTMP
Data CH1~CH7/CH9 ports: IP in over HTTP, UDP, RTP, SRT, RTMP, RTSP and HLS
IP out over HTTP, SRT, HLS and RTMP (Unicast)
8 Data ports(DCM750Plus):
First Data port: IP out over HTTP, UDP,SRT, HLS and RTMP
Data CH1~CH7 ports: IP in over HTTP, UDP, SRT,RTP, RTSP, RTMP and HLS
IP out over HTTP, SRT, HLS and RTMP (Unicast)
UDP/RTP input support MPTS (bitrate ≤30M)/SPTS
TS files uploading through Web management
IP anti- jitter function
adding scrolling caption, welcome words, boot image and boot video
Support downloading Dibsys IPTV APK directly from this device
Up to 80 HD/SD programs (DCM750), or 150 HD/SD programs(DCM750Plus) (Bitrate: 2Mbps) When HTTP/RTP/RTSP/HLS is converted into UDP (Multicast), suggest maximum 80% CPU utilization
Support program playing with APK downloaded android STB and TV
Control via web-based NMS management through DATA port
-

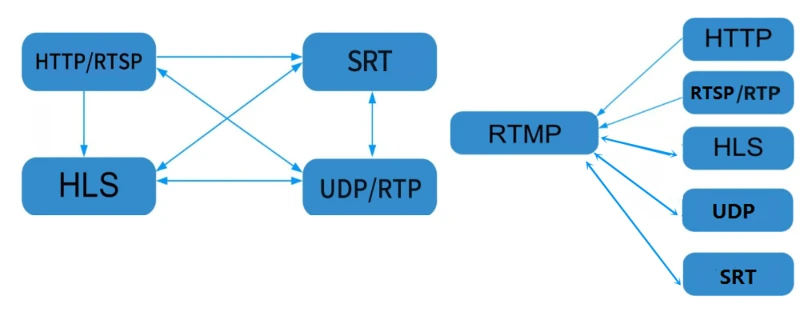

Protocol conversion
Ordering Information
|
Protocol conversion |
Programs |
Bitrate |
Terminals |
CPU utilization |
|
|
DCM750 |
DCM750Plus |
/ |
|||
|
HTTP/RTP/RTSP/HLS to UDP |
80 |
2M |
/ |
/ |
55% |
|
HTTP to HLS |
50 |
2M |
200 |
400 |
46% |
|
HTTP to HTTP |
30 |
2M |
150 |
300 |
80% |
|
50 |
2M |
80 |
160 |
80% |
|
|
UDP to HTTP |
50 |
2M |
120 |
240 |
50% |
|
UDP to HLS |
50 |
2M |
200 |
400 |
50% |
|
80 |
2M |
150 |
300 |
72% |
|
|
Model |
|
DCM750 |
DCM750-10 |
DCM750Plus |
|
Size |
|
1U |
1U |
1U |
|
Hardware |
CPU |
1037 3965 |
3965 |
intel I5 |
|
Core |
2 |
2 |
4 |
|
|
RAM |
8G |
8G |
8G |
|
|
ROM1 |
120G SSD |
120G SSD |
120G SSD |
|
|
ROM2 |
/ |
/ |
/ |
|
|
DATA Port Number |
|
8 ports |
10 ports |
8 ports |
|
SFP+ |
|
/ |
/ |
/ |
|
Software |
|
Live TV |
Live TV |
Live TV |
|
Load capacity |
Input Channels |
SD(4M) *40 |
SD(4M)* 40 |
HD(8M) *40 |
|
|
User Number |
100 |
100 |
120 |
|
VOD Load |
|
/ |
/ |
/ |
WEB GUI

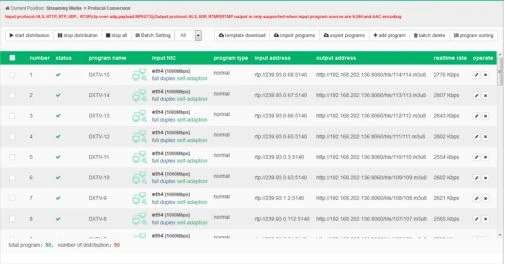

Streaming Media→ Protocol Conversion

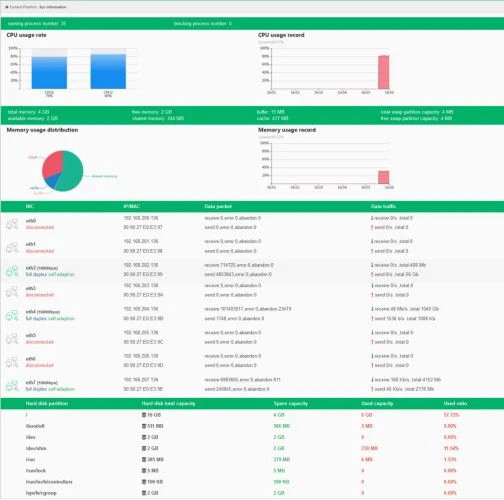

System Information
ADV→ Rolling Subtitles
Application
IPTV Gateway Controller& Control
Contribution and Distribution
Protocol conversion scenarios
