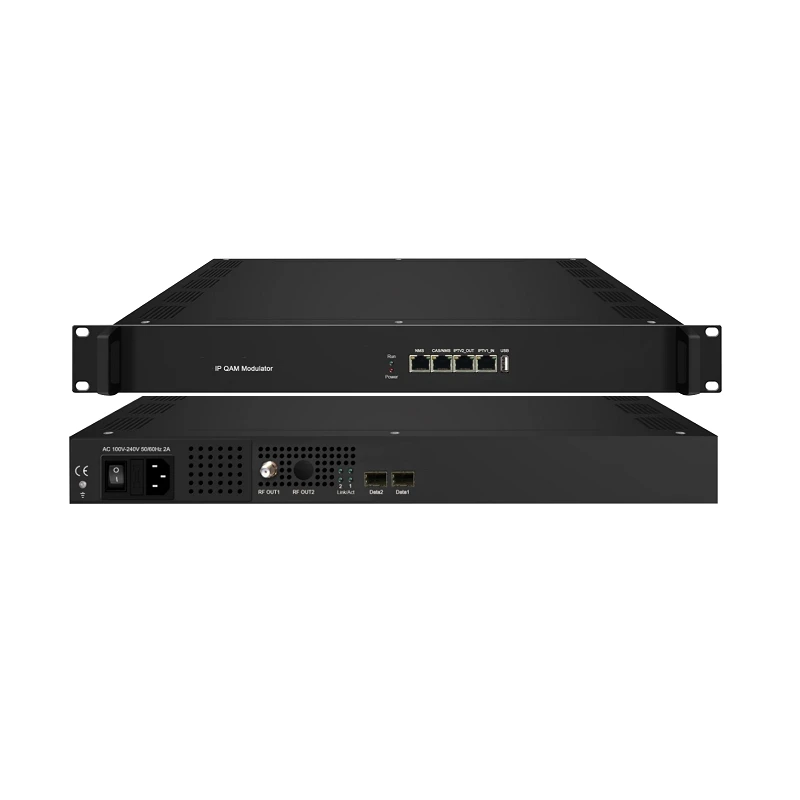

Multi-Protocol IP to RF Modulator, iM50 is a multi-functional DVB-C/DVB-T/ISDB-T/ATSC Modulator integrating multiple Gigabit Ethernet inputs, transport stream multiplexing and RF modulation channels within a 1U rack-mount chassis. Users can flexibly select different modulator modules to enable corresponding RF output standards.

Send Inquiry

Download

Description

iM50 Multi-protocol IP to RF Modulator supports IP stream inputs over UDP/RTP/RTSP/HLS/HTTP/SRT. It is an ideal solution for scenarios with a large number of displays covering nearly any distance, including small-to-medium scale digital TV broadcasting systems, hotels, stadiums, campuses, entertainment facilities and educational projects with limited budgets.

Multi-Protocol IP to RF Modulator, Designed for high-channel-density video distribution engineering projects, it enables rapid deployment, wide IP compatibility and simultaneous multi-carrier RF outputs, supporting global standards such as DVB-C, DVB-T, ISDB-T (Brazil, Japan) and ATSC.

Business Benefits

Optimized modulated channel resource utilization to carry more TV services within limited spectrum
Broad multi-protocol IP compatibility, easily accessing UDP/RTP/RTSP/HLS/HTTP/SRT streaming sources
Standard built-in RJ45 interfaces with optional SFP modules, supporting flexible electrical and optical network access
High availability architecture ensures continuous stable operation of all TV services
Compact integrated design saves rack space and reduces overall front-end construction investment

Features

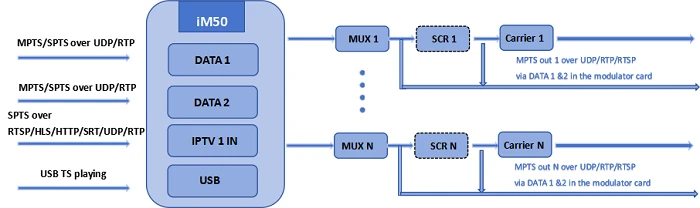

Multi-protocol IP inputs over UDP/RTP/RTSP/HLS/HTTP/SRT
SPTS input over UDP/RTP/RTSP/HLS/HTTP/SRT via the IPTV1 IN port in the front panel
MPTS/SPTS input over UDP and RTP via the 2 DATA ports in the modulator board
Multi-type order options for modulator cards, DVB-C, DVB-T, ATSC and ISDB-T
Support about 100Mbps-300Mbps data processing (IPTV1IN port in the front panel, up to the actual protocols etc) and max 840Mbps data processing(2 DATA ports in the modulator card)
MPTS output over UDP/RTP via 2 DATA ports in the modulator card as mirror of carriers output

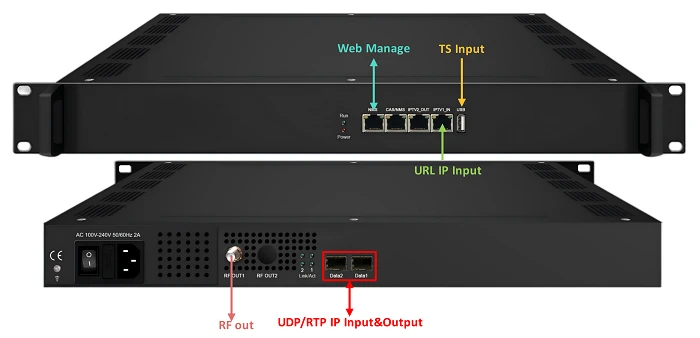

IPTV1 IN port in the front panel is an unidirectional IP-input port; 2 DATA ports in the modulator card are the bidirectional IP-input/output ports.
IPTV1, RJ45 Port; DATA1 & DATA2, RJ45 Port, Optional SFP Port
TS playing via USB Disk, USB 3.0
Support the remote reboot in Web GUI
Web management, Update via web
