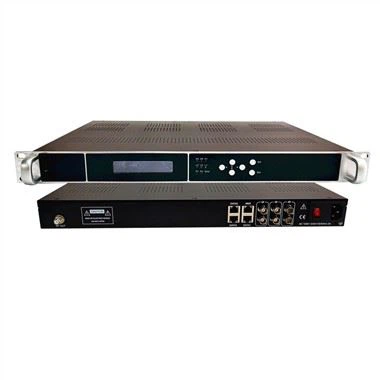

Multi-Channel HDMI H.264 DVB-C Encoder Modulator

Q924M32A video platform, digital systems demand powerful, flexible, multipurpose video processing and compact solutions that allow the service provider to support new network architectures.

This 1RU case comes with 6 independent hot-swappable module slots, each module can be configured individually based on the applications including encoding, modulating processing and the combination of all these functions. Built in modulation board, DVB-C (QAM) Modulation, with 12/32 QAM carrier RF out, Q924M32A can be widely used in Bangladesh, Indonesia, India, Pakistan, Nepal and other countries, for monitoring, training and educating in company, campus, hospital application.

Its pluggable and Hot-swappable module, flexible configuration is making it extremely scalable, reliable with high performance. Q924M32A FULL HD 1080P@60fps Encoder,  is an efficient, low-cost digital TV headend device, which can be used in public place such as metro, market hall, theatre, hotels, resorts for advertising.

Focusing on benefits

high PCR precision

• audio and video synchronization

• code stream transmitting stably in the network

• smooth and stable video play

Low network jitter and PCR jitter

• up to 8*MPTS with null packets

• each MPTS is less than 100Mbps

• can be used in 100Mbps network environment

powerful stream processing capability

• Highly integrated--- 1. 24 channels HD-MI encoding, 2. up to 8*MPTS build in MUX, 3. 512 *SPTS Demux outputs

• Widely used in convert MPTS of DTV to SPTS of IPTV

• PID filtering, re-mapping and PSI/SI rebuilding and editing supported

• 6 independent hot-swappable module, 4* HD-MI per module

• flexible encoding&modulating board combination

• DVB-C (QAM) Modulation, 12/32 Carrier RF ut

• H.264 video encoding

• Two separate ASI input for External TS Multiplexing

• Simultaneously 4*MPTS and 512*SPTS over UDP/RTP IP out

• 12/32 separate multiplexing and Up-converter modulating adjacent carrier out

• support multiplexing function: multiplex any input to RF or MPTS output

• Audio encoding: MPEG-1 Layer 2, AAC-LC, AAC-HE v1(SBR), AAC-HE v2(SBR+PS),AC3 optional

• Selectable the Value of PCR PID same as Video PID

• Non adjacent-frequency supported

• Support TTL editing

• PSI/SI editing & inserting

• PID Remapping & Filtering

• Selectable LOGO,QR code,OSD insertion for every, All or Each module of local channel

• Support PCR correct and PCR interval adjusting

• Easy-to-Use System Management via Web

• Redundancy Power Supply

• dual power supply

• Remote WEB reboot supported
