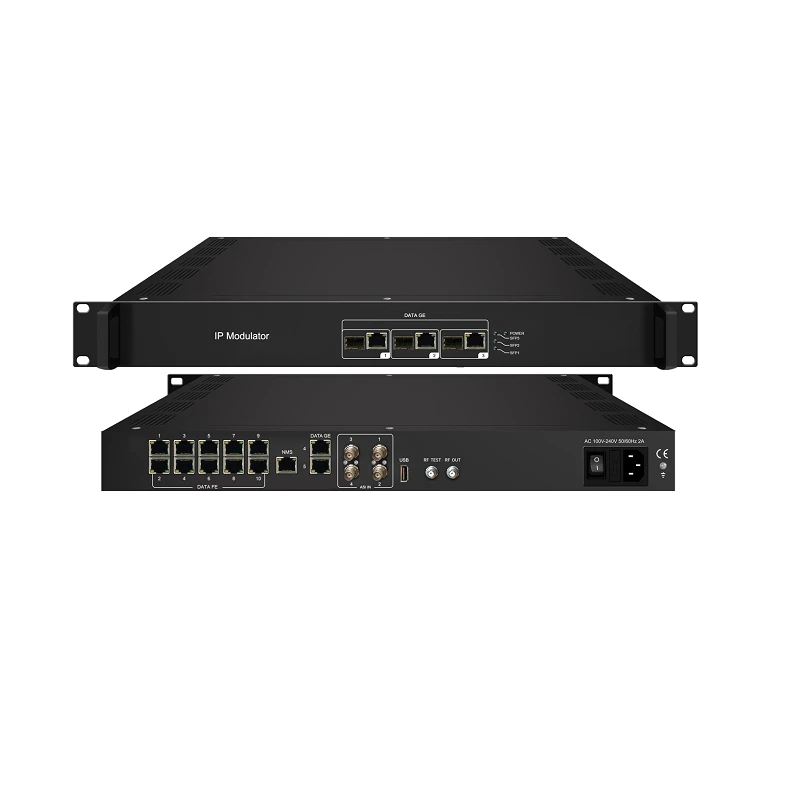

IP To RF DVB-C DVB-T ISDB-T Modulator

Name: China IP To RF DVB-C DVB-T ISDB-T Modulator Suppliers, Manufacturers, Factory, Company - Low Price IP To RF DVB-C DVB-T ISDB-T Modulator - Haoxun - HAOXUN Technologies
Brand: Dibsys
SKU: 264364568

IP to RF DVB-C DVB-T ISDB-T Modulator, With IP source inputs and Multi-Modulated Carrier RF outputs Simultaneously 28 in 1 ISDB-T, 32 in 1 DVB-T, or 48 in 1 DVB-C, MultiMOD all-in-one device designed especially for high channel density Distribution Video Engineering project where rapid deployment, compatibility IP source inputs and Multi-Modulated Carrier RF outputs.

Send Inquiry

Download

Description

MultiMOD IP to RF DVB-C DVB-T ISDB-T Modulator is an ideal solution for environments where you have a large number of displays over almost any distance such as Small and Medium Scale of Digital TV broadcasting System, Hotel, stadiums, Campus, entertainment facilities, Education Markets in limited budget. It supports maximum 128 IP input through the 3 GE/SFP port and 2 GE ports, 32 IP input through the 10 FE port, and also has 2 ASI input.

Features

3*RJ45 /SFP GE ports (each port max 128*IP in), Data1&2&3 ports only for input
2GE ports (each port max 128*IP in), Data4 is input ports
Data5 is bi-directional ports, 28/32/48 IP out (as mirror of 28*ISDB-T/32*DVB-T /48*DVB-C out version)
10 FE ports (each port max 32*IP in):Date1-Date10 all for input
ISDB-T/DVB-T /DVB-C RF MODULATOR in one device, Modulation dynamic switching (only two modulation options can be chosen in on device)
Supports accurate PCR adjusting
Max 840Mbps for each input
Supports PID remapping and PSI/SI editing, PIDs remapping per channel
Supports up to 256 pids per channel
Supports 2*ASI input
Support 1*USB Player (file system FAT 32)
Support 28 /32 /48 multiplexed TS over UDP/RTP output
28*ISDB-T /32*DVB-T /48*DVB-C non-adjacent carriers output, compliant to ARIB STD-B31 standard/ ETSI EN300 744 standard/ DVB-C (EN 300 429) and ITU-T J.83 A/B/C
Support Web-based Network management
