HEVC DVB-T2 Solution Must-Have Products

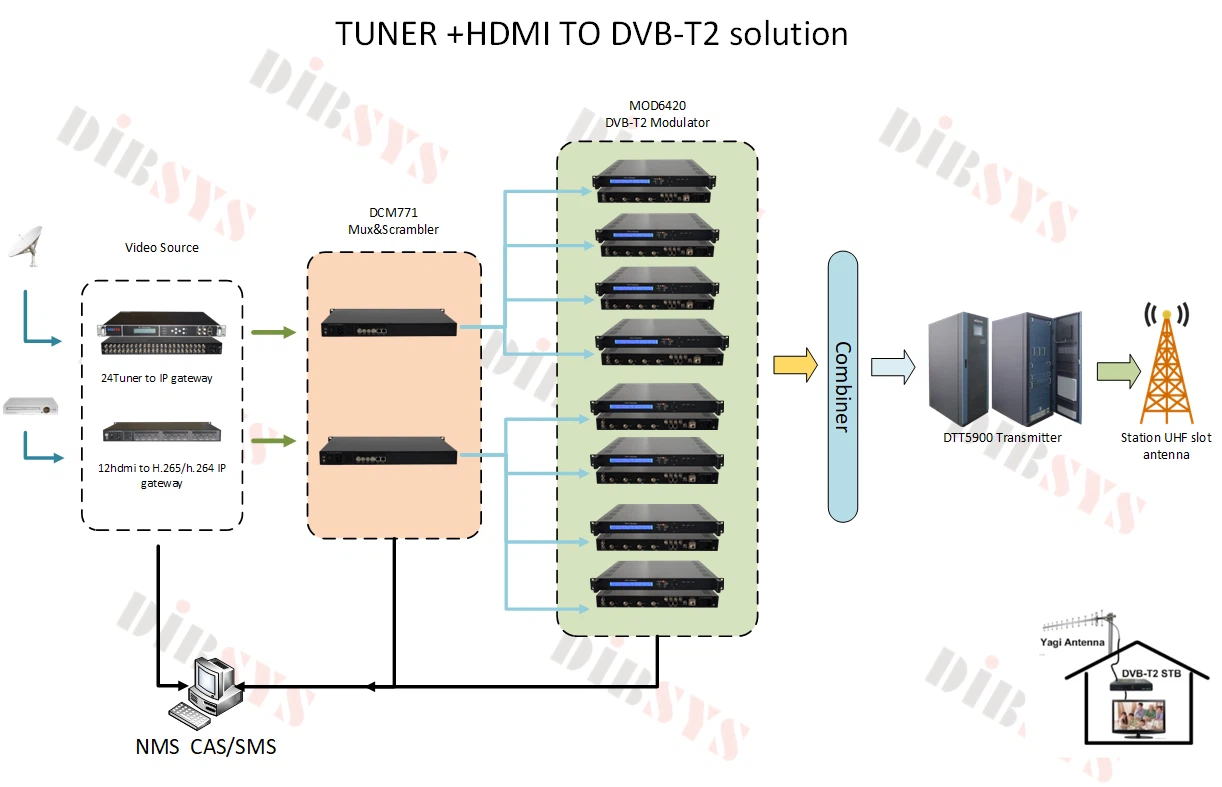

What does DIBSYS help to setup DVB-T2 Solution?

• Based on the latest advancements in digital video compression technology including FTA/Encrypted channels receiving, HD/SD Encoding, Multiplexing and Scrambling, DVB-T2 Modulation and transmission.

• DIBSYS  DVB-T/T2 solution is flexible and scalable, and can be tuned to fit any customer-specific requirement. Possessing the widest DVB-T/T2 experience in the market, with headends installed in more than 60 countries, Dibsys is the ideal company to help you overcome today's complex business challenges while delivering low total cost of ownership.

HD/SDI 4K Encoder  ENC3741S

12 channels HEVC H.265 FULL HD 4K Encoder

• 12 hd video channels (4 channels in one module, up to 3 modules), SDI interface optional

• Superior real-time HEVC/H.264 encoding

• Audio encoding mode: MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2

• Supports HD/4K formats and frames including 1080p @60fps, 1080i, 720p

Multiplexing and Scrambling  DCM771

GbE IP MPEG Processor with Multiplexing, Scrambling

• Up to 2*GbE 4ASI

• Up to 1700 Mbps GbE IP inputs/outputs

• Up to 500 input TS, 32 output TS, 1000 DTV programs, be equivalent to 32 sets of multiplexer and scrambler separately

• Up to 4 CAS simul-cryption

• SPTS and MPTS supported

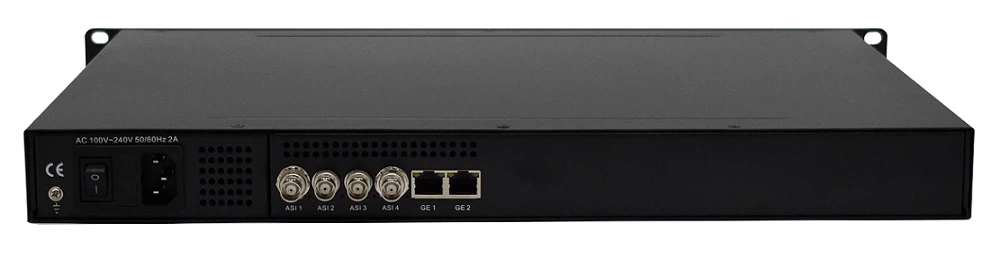

DVB-T2 Modulator  MOD6420

Professional DVB-T/T2 Modulator

• Fully complying with EN302 755 standard

• 4 ASI input ports (for 1 channel TS input with 3 ports for backup)

• non-linear and linear digital pre-distortion (DPD) (option)

• SISO/MISO transmission

• MFN net mode supported

• Mono and Multiple PLP broadcasting

• DVB-T2 RF output

DVB-T2 Modulator
