Economical DTV upgrades Headend equipment
Nov 17, 2021
Economical DTV upgrades Headend equipment
Signal Source Receiving, Modulation,Multiplexing and Scrambling
Equipments receive digital satellite signal source, local studio programs and signal source.
In this process, TS stream, HD audio video signal covert to IP stream out. We would like
to recommend our high quality headend eqiupments which are suitble for the system.They are
typical product of satellite receiver IRD, MPEG4 HD encoder, Modulator.
All of our technicians are factory trained certified, and participate in ongoing education to assure you receive the most up to date and reliable service.
High Performance
- Supports 80 programs at least and no limit number of STB users
- Advanced in video compression technology to deliver unsurpassed video quality at lowest bitrates and low latency
Flexibility and Stability
- Modular design across the whole system, easy installation, maintenance and upgrade
- Add or exchange the equipment as necessary
- 1+1 redundant & hot-swappable power supplies for high reliability and stability of system.
High Adaptability and Availability
- Suitable for different common channels with one model of modulator
- Pay-as-you-grow modular design, flexible configurations and licensing mechanism.
Lower CAPEX/OPEX
- Low power consumption with high efficient reduce electricity cost for operators
-Adopt Web browser and SNMP management with remote monitoring and control, then can greatly
reduce management time and operating expenses (OPEX) of operators.
- High quality equipment built in multiplexing and scrambling simplify the system and save your money.
Product Details
Q116 16* RF FTA to IP Gateway
16 FTA/Biss key DVB-S/S2 QPSK/8PSK and 16APSk/32APSK modulation (DVB-C/DVB-T/T2/ISDB-T/ATSC/DTMB optional)
Up to 512 SPTS/4 MPTS over IP out
MPEG-TS over RTP/UDP out
Option BISS-1 and BISS-E decryption
Q324 24-Channel HD to IP Encoder
24 HD(HDCP) and 2*ASI inputs
H.264/AVC video encoding
MPEG-1 Layer 2, Optional: AAC-LC, AAC-HE v1, AAC-HE v2 Audio encoding
OSD/Logo/QR code Insertion support

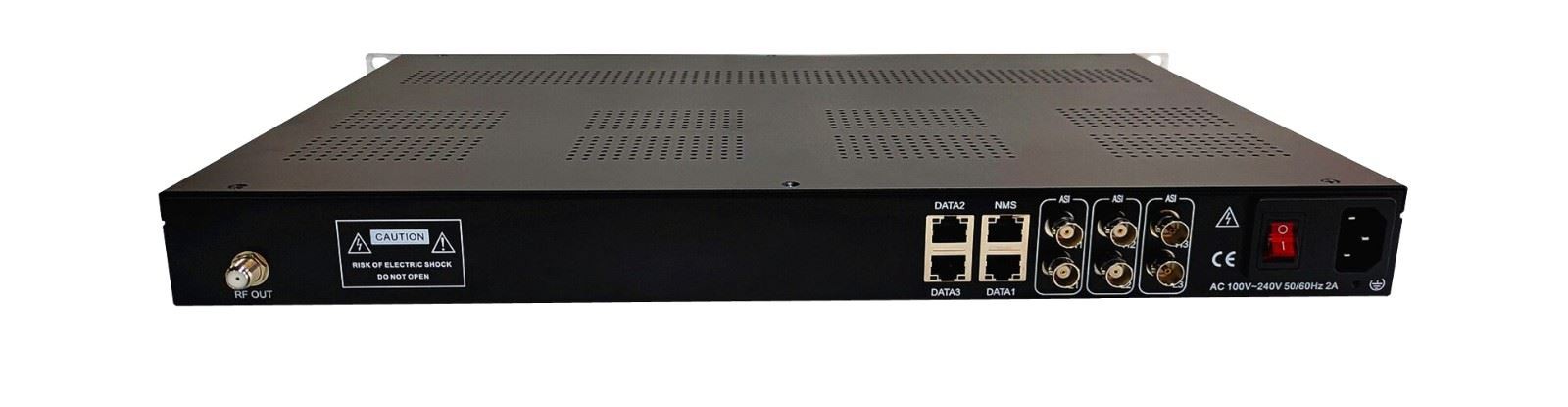

Q416M IP to RF Modulator optional DVB-C DVB-T ISDB-T ATSC DTMB
Optional DVB-C (QAM), DVB-T (COFDM), ATSC-T, ISDB-T, DTMB Modulation
supports 384*IP (SPTS/MPTS) inputs over 3*GbE Port
6 separate ASI input
8*MPTS (6*MPTS and 2*RF pass through) out over GE1
8/12/16 Channel Non-adjacent Carrier RF output

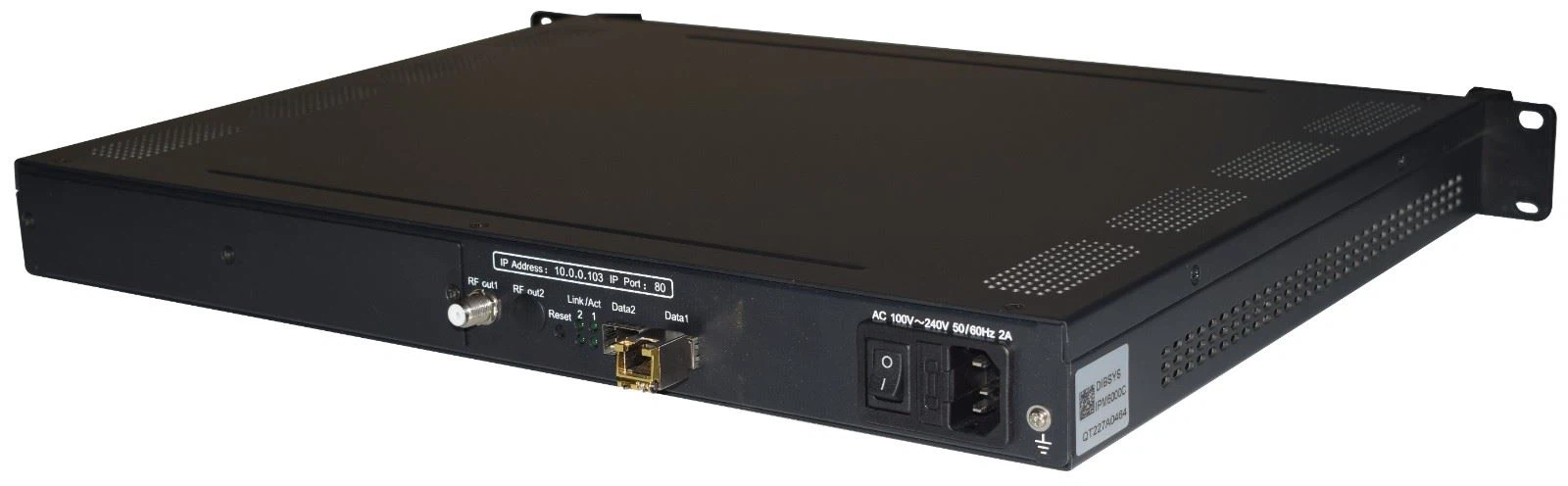

IPM6000C GbE IP to DVB-C Modulator
Selectable RJ45 or SFP interfaces port of 2 GbE IP inputs and modulated carriers RF outputs of DVB-C
Up to 1024 SPTS or MPTS Inputs over GbE Port
16/32 No-adjacent Carrier RF output as mirror of IP out after Multiplexing or Scrambling
ITU-T J.83 Annex A/B compliant
What will DIBSYS do to assist you to build the system ?
Consult: According to your system build plan, DIBSYS will provide advice on selecting available contents, using proper devices and software, planning the build and start-up process, and so on.
Build: DIBSYSwill help to install the software, configurate the server, assist to acquire the contents and then re-broadcast in your system.
Launch and maintenance: DIBSYS will provide necessary technical training to your workers, so that they can master all management content and user skills. You will have full control via an all-in-one CMS system.
