H.264 Hd Isdb-t Encoder Modulator

Overview

Q7 with H.264/H.265 video encoding mode by default, supports MPTS/SPTS/ASI independent multiplexing output and IP out channel switch.

With PSI/SI technology to modify the audio and video PID information of the output program, Q7 also supports to insert a NIT information table into the WEB to achieve better compatibility with the backend device.

Q7 supports to edit program number and name of the output video stream, and the logical channel number setting is also added to the encoder.

Overall Dibsys 's encoder modulators with OSD/Logo/QR code Insertion function, which perfectly suit any professional SD/HD Video company, including TV Channels, Live broadcasters, Government applications, Hotel, Campus, Entertainment facilities, education broadcasting systems at schools and government buildings and many others.

Many outstanding features are integrated into Q7, making it a very suitable platform for the CATV, IPTV, OTT projects.

Highlights

Works both Coax Cable & IPTV networks: Distribute MPEG-4 AVC/HEVC/H.265 encoding to all kinds of Modulation and All SPTS/ MPTS Over UDP IP out.

Operation via LCD Screen and Web Management : easy to read LCD color front panel that makes it easy to setup and monitor your channels, check firmware, and identify IP addresses without a computer.

Multi-Modulation: Optional DVB-C (QAM), DVB-T (COFDM), ATSC-T, ISDB-T, DTMB Modulation (can selectable in one device).

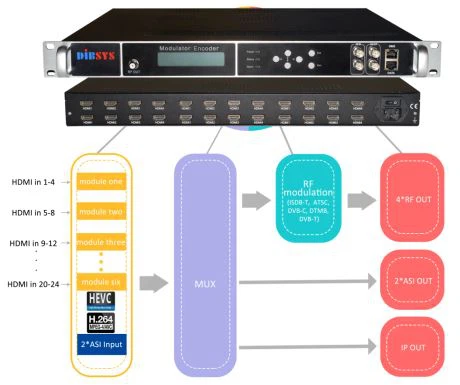

Flexible selection of different input modules: four tuner, four HDMI encoding in one device.

Key Features

1. Distribute Up to 8/12/16/20/24 channels of HD content over RF (DVB-T/DVB-C/DTMB/ISDB-T/ATSC) to an unlimited number of TVs

2. Optional DVB-C (QAM), DVB-T (COFDM), ATSC-T, ISDB-T, DTMB Modulation (can selectable in WEB management) 4*Carrier RF Out, (8*Carrier RF Out optional)

3. In modulation Mode, support 128*IP input

4. H.264/H.265 video encoding format

5. Two separate ASI input for External TS Multiplexing

6. Simulaneously MPTS and SPTS over UDP/RTP IP out

7. Audio encoding: MPEG-1 Layer 2, Optional: AAC-LC, AAC-HE v1, AAC-HE v2

8. Audio gain adjustment supported

9. 4 separate multiplexing and Up-converter modulating adjacent carrier out

10. Selectable the Value of PCR PID same as Video PID

11. CBR mode supported

12. Selectable LOGO,QR code,OSD insertion for every, All or Each module of local channel

13. Support TTL editing

14. LCN (Logical Channel Number) support

15. PSI/SI editing & inserting

16. PID Remapping & Filtering

17. Support PCR correct and PCR interval adjusting

18. Easy-to-Use System Management via Web

Typical Order Information

Application

1. Distribute IP source to All TVs Over Existing TV Coax

2. Advertising, monitoring, training and educating

3. Upgrade all your analog Head-ends to digital TV Solution

4. Enterprise, Hotel, campus, hospital, Public Place

5. Works with Digital TV transmitter in wireless TV broadcasting

6. Low cost Digital TV distribution
