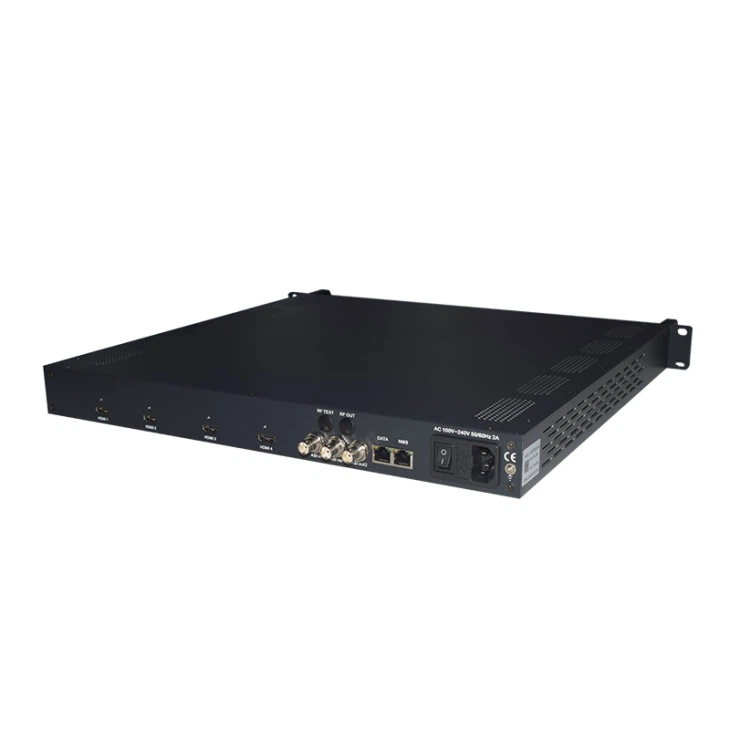

Q304 4 ch hd mpeg4 avc full hd encoder
◆ downscale resolution 1080P@ 60fps/720p to 576p/480p ◆ ASI and IP streaming simultaneously ◆ Low power consumption and high reliability
Description
Overview
Q3 This platform, with H.264 video encoding mode by default, supports MPTS/SPTS/ASI independent multiplexing output and IP out channel switch.
With PSI/SI technology to modify the audio and video PID information of the output program, Q3 also supports to insert a NIT information table into the WEB to achieve better compatibility with the backend device.
Q3 supports to edit program number and name of the output video stream, and the logical channel number setting is also added to the encoder.
Overall Dibsys 's encoder modulators with OSD/Logo/QR code Insertion function, which perfectly suit any professional SD/HD Video company, including TV Channels, Live broadcasters, Government applications, Hotel, Campus, Entertainment facilities, education broadcasting systems at schools and government buildings and many others.
Many outstanding features are integrated into Q3, making it a very suitable platform for the CATV, IPTV, OTT projects.
Features
Distribute Up to 8/12/16/20/24 channels of HD content over RF (DVB-T/DVB-C/DTMB/ISDB-T/ATSC) to an unlimited number of TVs
Optional DVB-C (QAM), DVB-T (COFDM), ATSC-T, ISDB-T, DTMB Modulation (can selectable in WEB management) 4*Carrier RF Out, (8/12*Carrier RF Out optional)
In modulation Mode, support 128*IP input
Two separate ASI input for External TS Multiplexing
Simulaneously MPTS and SPTS over UDP/RTP IP out
Audio encoding: MPEG-1 Layer 2, Optional: AAC-LC, AAC-HE v1, AAC-HE v2
Audio gain adjustment supported
4 separate multiplexing and Up-converter modulating adjacent carrier out
Selectable the Value of PCR PID same as Video PID
CBR mode supported
Selectable LOGO,QR code,OSD insertion for every, All or Each module of local channel
Support TTL editing
LCN (Logical Channel Number) support
PSI/SI editing & inserting
PID Remapping & Filtering
Support PCR correct and PCR interval adjusting
Easy-to-Use System Management via Web
passed the EU CE&RoHS certification
