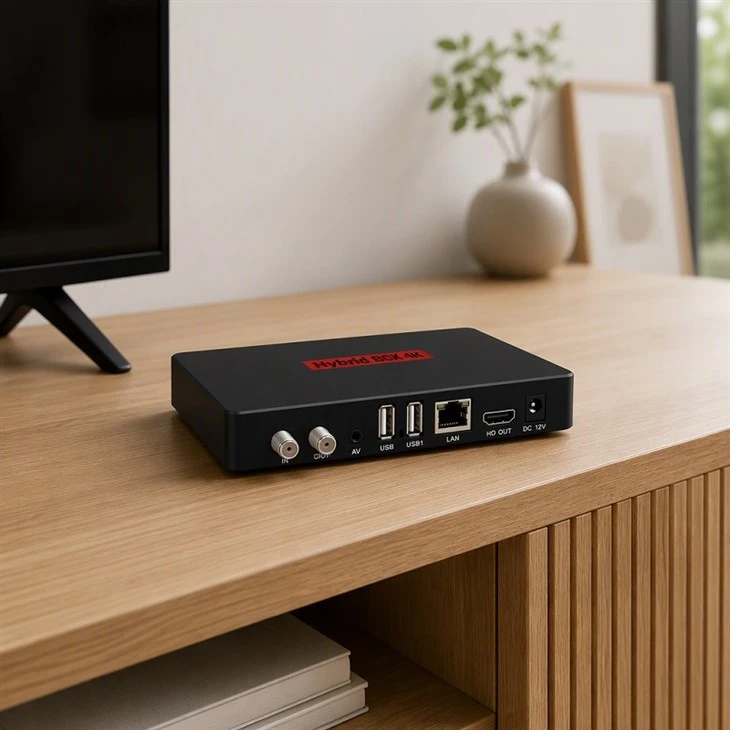

Android DTV Hybrid Set Top Box

Name: China Android DTV Hybrid Set Top Box Suppliers, Manufacturers, Factory, Company - Low Price Android DTV Hybrid Set Top Box - Haoxun - HAOXUN Technologies
Brand: Dibsys
SKU: 316049234

Android DTV Hybrid Set Top Box, Applied to Hybrid Android Box, IPTV gateway and Modulator with Digital Tuner IPTV+DTV terminal scenarios.

Send Inquiry

Download

Description

STB905 Hybrid Android tuner STBs, with iMOD IPTV gateway and Modulator, which support multiple IP streaming sources and multi-standard RF output for combined IPTV and DTV viewing. For sites already running IPTV such as hotels, it can expand live CATV channels using existing coax wiring. It fits protocol conversion, stream distribution and small-medium CATV headend applications.

Features

Android DTV Hybrid Set Top Box
Integrated DTV tuner, supports DVB-T2 / DVB-T / DVB-C
Android 9.0 Operating System
CPU: Amlogic S905L Quad core ARM Cortex-A53 CPU up to 1.5GHz (DVFS)
GPU: Penta-core ARM Mali-450 GPU up to 750MHz+ (DFS)
Supports HDR10 and HLG HDR processing
Built-in Ethernet, Wi-Fi and HD-MI 2.0 output
DDRIII 2GB (Optional 4GB),EMMC Flash 16GB (Optional 32GB)
Three models optional: STB905S, STB905 Pro, STB905 Max with different CPU and memory configurations

Key Advantages & Benefits

Dual signal path combining DTV broadcast and Android IP streaming; DTV service stays available during internet outages.
All-in-one terminal replaces standalone DTV receiver and Android box to cut CAPEX & OPEX.
Combines traditional live broadcast with OTT, VOD and hotel portal services for higher revenue.
DTV tuner enables low-latency, stable video free from network packet jitter.
Compatible with iMOD platform for interactive services across DTV live and IPTV streams.

Android DTV Hybrid Set Top Box

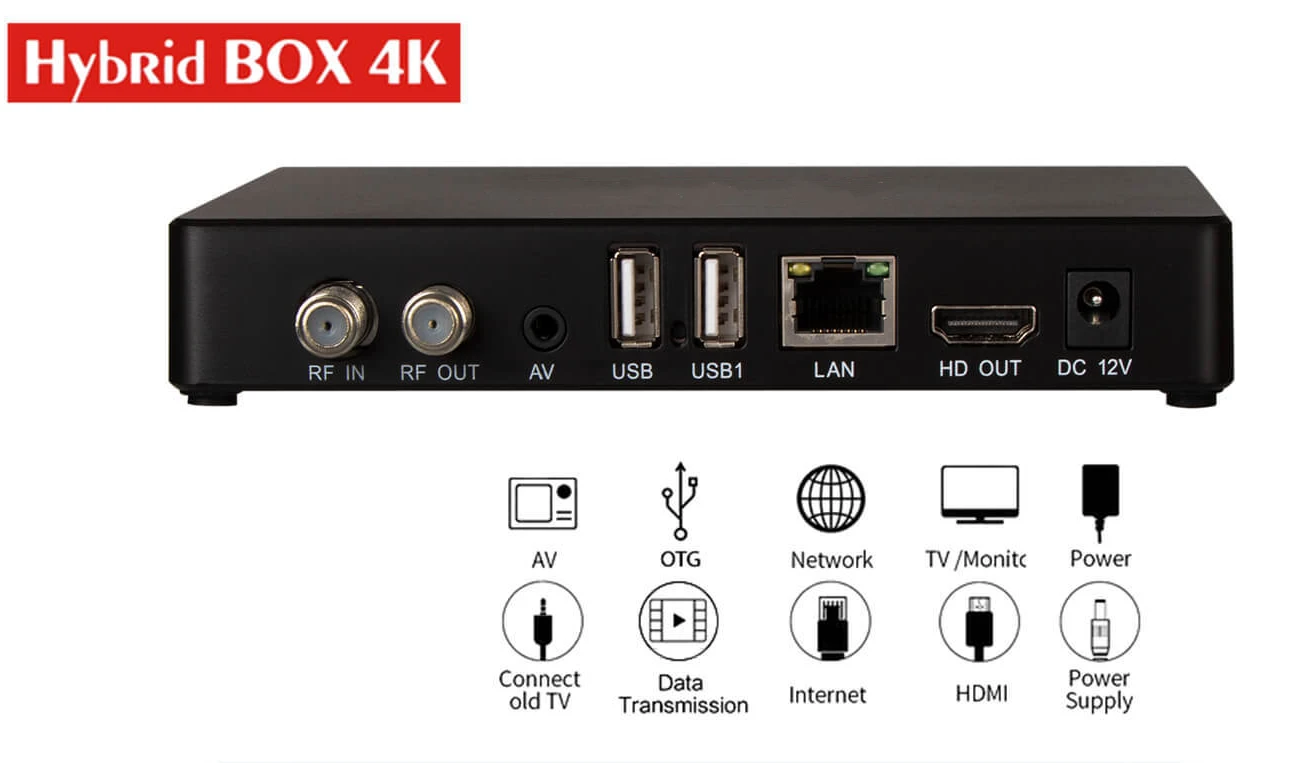

STB905 app
