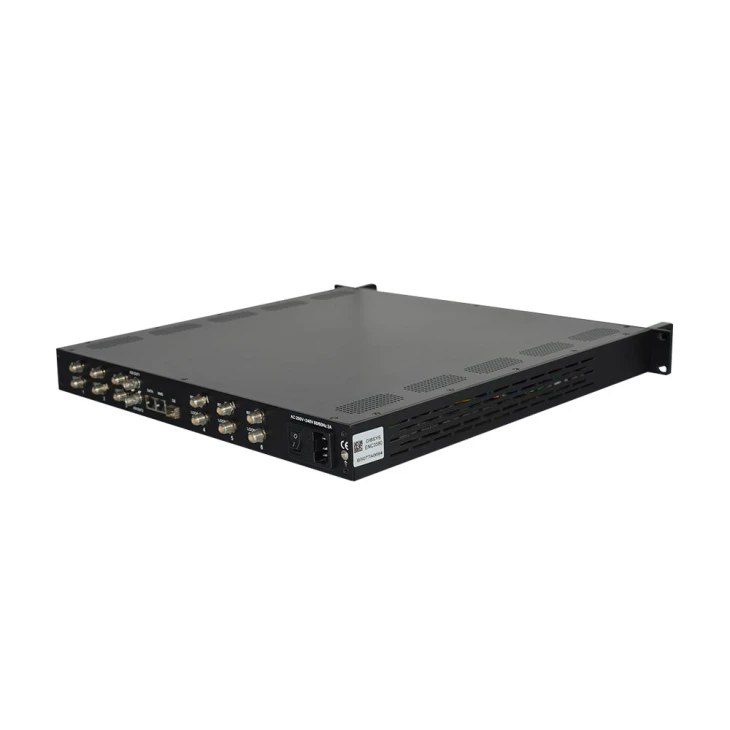

ENC3580 8CH broadcast mpeg2 h 264 hd Transcoder
◆ three different version: 6ASI+IP to IP transcoder; 6FTA DVB-S2+IP to IP transcoder; 4 DVB-S2(CI) to IP transcoder ◆ IP output max to 1080I, IP input can be backward compatible with video source resolution, max 1080P ◆ 8 SD channels or 4 HD channels ◆ MPTS and SPTS both supportedSend InquiryChat Now
ENC3580 is a professional bidirectional transcoder to convert video between H.264 and MPEG-2 format and also to transcode between HD and SD programs simultaneously. It is equipped with 6 DVB-S2/C/T tuner inputs to receive channels directly, or ASI /IP inputs to receive digital channels. After transcoding, it outputs MPTS & SPTS through the DATA IP or ASI port.
One of the main features of ENC3580 is integrated HD-to-SD down Converting, making the launch of differentiated services, such as an all-HD broadcast of the SD lineup simple and cost effective. Another outstanding feature of ENC3580 is that it can transcode HD/SD H.264 to MPEG-2, so that easy to change H.264 signals from satellite and so on to low-cost MPEG-2 application system.
This transcoder supports advanced re-multiplexing and can effectively provide operators with real-time code rate switch and optimize the video with its high performance.
BISS function is now embedded to descramble your tuner input programs and CC function as well to transport your closed caption (or teletext). It can be easily managed through WEB NMS system, and has become an ideal solution for operator to provide high quality video trans-coding.
◆8 * IP (SPTS/MPTS) input, and has 6* tuners or 6*ASI, 4* tuners or 4*ASI, 4*tuners input with 4 CAM/CI slots multi-input options
◆8*SPTS & 1*MPTS (UDP and RTP/RTSP) output; 2 ASI output
◆High-quality, high density transcoding of 8 SD or 4 HD MPEG-2 and MPEG-4 AVC broadcast channels
◆SD/HD MPEG-2 to MPEG-2 and MPEG-4 AVC to MPEG-4 AVC re-encoding
◆Support BISS (Basic Interoperable Scrambling System) conditional access
◆Support CC(closed caption)
◆HD to SD down conversion
◆MPTS/SPTS(Simultaneously) over IP outputs
◆MPEG-2 SD/HD and H.264 SD/HD any-to-any Video Transcoding
◆AAC and MPEG-2 AC3 any-to-any audio trans- coding or pass-through
◆Supporting CBR and VBR rate control
◆Support screen ratio 16:9 and 4:3
◆Easy-to-Use System Management
◆LCD & Key board local control; WEB NMS management
