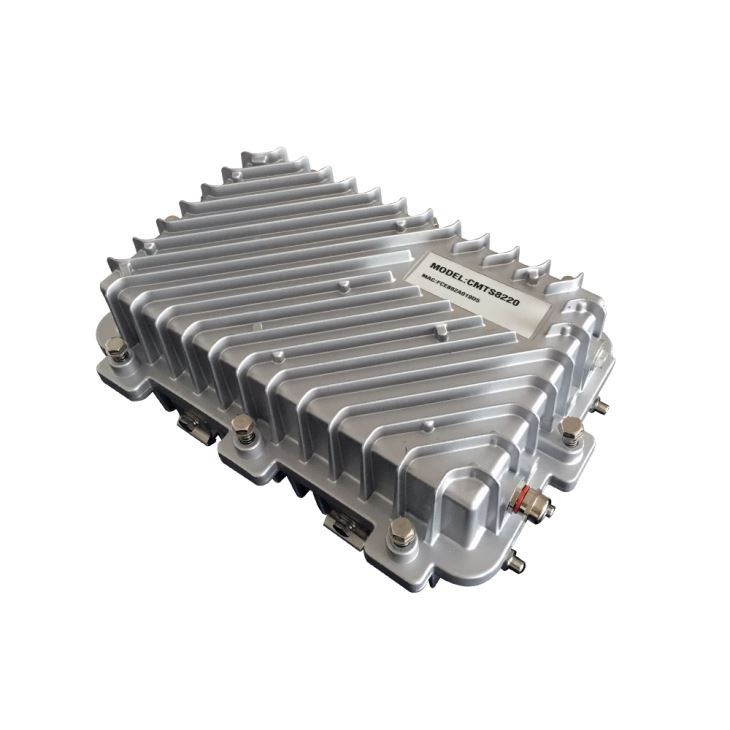

DB-CMTS8220 Outdoor Docsis 3.0 CMTS
◆ American docsis3.0 and Euro docsis 3.0 supported, compatible with CISCO CMTS headend ◆ up 511 units docsis 2.0 3.0 cable modem can be connected with external DHCP server ◆ compact outdoor chassis can be applied in small users town or hotel iptv or holiday park or cities etc.. ◆ Bidirectional 960Mbps broadband accessSend InquiryChat Now
The outdoor CMTS product follow DOCSIS 3.0 standard ,Using the full DOCSIS3.0, MiniCMTS and user device fits international DOCSIS standard, effectively meet the technical standard of future DOCSIS. This product support 16 downstream channels to 800Mbps; 4 upstream channels to 160Mbps, fulfilling the broadband accessing of 960Mbps. It can support 511 Cable Modems online simultaneously, fully compatible with the DOCSIS2.0, 3.0 Cable Modem.
The next generation DOCSIS3.0 network uses CMTS series, mixing the advantage of broadcasting and flexible data interactive about IP net, to promote the value of broadcasting HFC net, is the "trump card" of the Broadcasting accessing reform.
The products can adapt to multi-environment deployment. With waterproof outdoor design, it makes the products can be deployed in optical node. Outdoor miniCMTS is not only integrated with high performance DOCSIS3.0 module, but also can be configurated with optional built-in optical receiver module, ONU module, IPQAM module according to the users' individual needs. It can realize a complete ONU all in one solution.
MiniCMTS 8 advantages:
1.High standardized MiniCMTS series product fully compatible of DOCSIS standard, also can compatible with DOCSIS2.0/DOCSIS3.0 CableModem.
2.High bandwidth Highest to support 4 upstream QAM channels, bandwidth to 160Mbps; 16 downstream QAM channels, bandwidth to 800Mbps, bandwidth to 960Mbps.
3.High Qos guarantee DOCSIS can offer the high request of Qos quarantee, depend to fulfill the business of Voicing Qos request.
4.Support IPQAM function Through the configuration, 16 downstream channels of DB-CMTS can be configurated to 8 downstream channels used in data business which can be used to IPQAM VOD. As this time, the downstream bandwidth of DB-CMTS8100 is 400Mbps, used in IPQAM VOD bandwidth is up to 400Mbps. Meet the large scale of VOD , especially the HD VOD.
5. Achieve OLT and MTCS unified management. It is no need setting for installation and replacement. The eqiupment can auto complete configuration process when power up.
6. 3 in1 product,integrated solution. To meet the individual needs of customers optional built-in optical receiver module, ONU module, IPQAM module.Realize optical node integrated ytpe solution
7. Perfect web management. B/S frame,graphical interfaces,fault alarm,convenient operation and maintenance.
8. Low cost: The transforming cost is almost 30%- 50% than big CMTS, equal to EPON+EOC.
1.Outdoor IPV6 waterproof type design, work temperature at -25℃~75℃.
2.1 SFP interface or 1 1000M LAN service port.
3. Built-in mixer, 1i n 1 out, 2 in 2 out, 4 in 4 out optional.
5. 220V or 60V power supply.
6. Uplink network interface photoelectricity is optional.
7.Support 60V over voltage, access current is 10A.
8. Built in IPQAM module,ONU module(To use which model is up to operator).
9. 4 channels QAM upstream, 16 channels QAM downstream.
10. Frequency range:87~1000Mhz(biggest difference of the 16 frequency points is less than192 Mh).
